USED Super-Mag + & Transformer, CW

FIE

USED Super-Mag + & Transformer, CW

$1,989.00

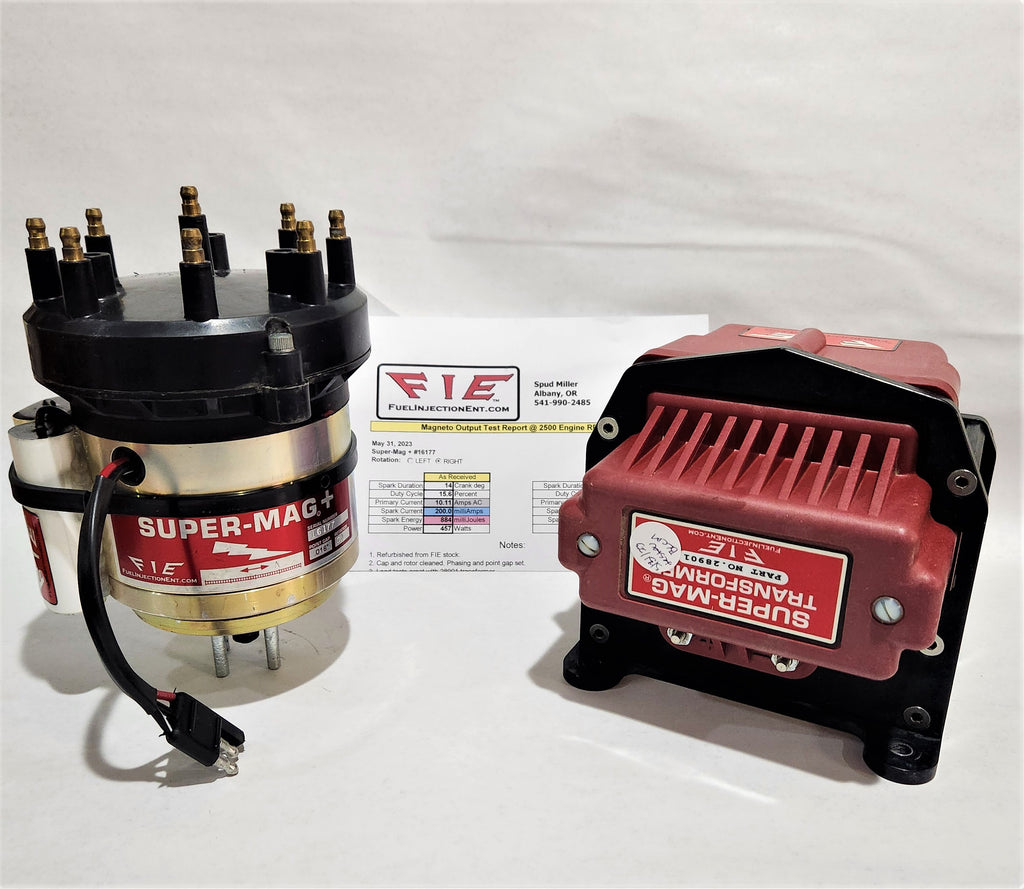

Refurbished Super-Mag+  magneto generator with big coil and billet bracket together as a system. This is the most reliable, POWERFUL, points-style Super-mag generator on the planet.

Comes with our "severe-duty" contact points.  If you measure this mag like an MSD magneto, it makes 30 amps of primary current @ 2500 engine RPM (10 amps average RMS current, 30 amps peak) This translates into more than DOUBLE the output of a Mag 20 at the spark plug throughout the entire RPM range (almost TRIPLE by 10,000 RPM). This was born to light nitromethane or methanol in extreme boost applications.

This mag contains a specially designed Neodymium Magnet/Poleshoe/Shaft assembly and unique winding. This mag uses the standard pro cap and a new one-piece high temp rotor. This mag is setup for right-hand rotation (CW). We can change it to CCW for you at no additional cost and can add the driver of your choice to the bottom. Mag and coil have been tested together through 10,000 engine RPM after refurbishing. Complete with output test report.
